New 2023 XUV650E Gator

Specifications

Compare >>> Select up to 2 models to compare specifications

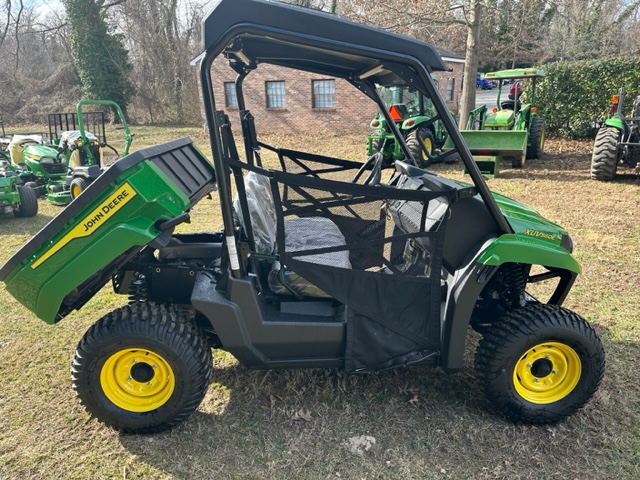

John Deere2023 XUV650E Gator

Add Model --Please Select-- Gator XUV560E S4 (Model year 2020) Gator XUV590E (Model year 2020) Gator XUV590E S4 (Model year 2020) Gator XUV590M (Model year 2020) Gator XUV590M S4 (Model year 2020)

Add Model --Please Select-- Gator XUV560E S4 (Model year 2020) Gator XUV590E (Model year 2020) Gator XUV590E S4 (Model year 2020) Gator XUV590M (Model year 2020) Gator XUV590M S4 (Model year 2020)

Engine power	11.9* kW 16 hp
Cargo box dimensions	82L x 120.9W x 29.7D (0.25 m3) cm 32.3L x 47.6W x 11.7D (8.9 ft3) in.
Cargo box capacity (weight)	227 kg 500 lb
Towing capacity	1500 lb 680 kg
Front suspension	Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear suspension	Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel
Final drive	High, Low, Neutral, Reverse Transaxle
Four wheel drive	Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Fuel capacity	18.5 L 4.9 U.S. gal.

Type	4-cycle gas, V-twin, Dynamically tuned Carb, Overhead Valves (OHV)
Displacement	570 cc
Power	11.9* kW 16 hp
Cooling system	Air cooled

Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final drive	High, Low, Neutral, Reverse Transaxle
Four wheel drive	Dash lever actuated four-wheel drive system with limited slip front differential, plus locking rear differential
Traction assist	Positive locking, mechanically actuated (hand lever operated) rear differential lock
Descent control	Not available

Front	Fully independent dual A-Arm with adjustable coil over shocks, 8 in. (203 mm) travel, Anti-roll bar
Rear	Fully independent with lower A-arm and upper camber link with adjustable coil over shocks, 8 in. (203 mm) travel

Type	196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers
Park brake	Automotive-style foot-actuated mechanical park brake system

Front	25x8-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x8-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x8-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys
Rear	25x10-12 Ancla M-T (Extreme Terrain) 4-ply rating steel wheels or 25x10-12 Terrahawk AT (All Terrain) 4-ply rating steel wheels; optional 26x10-14 Maxxis Bighorn 2.0 6-ply rating on yellow aluminum alloys

Wheelbase	1.86 m 72.8 in.
Weight	Wet weight (includes fuel/fluids): 576 kg Wet weight (includes fuel/fluids): 1270 lb
Length	2870 mm 113 in.
Width	1435 mm 56.5 in.
Height	1867 mm 73.5 in.
Tread centers	Front: 1220 mm Front: 48 in. Rear: 1168 mm Rear: 46 in.
Ground clearance	267 mm minimum 10.5 in. minimum
Fuel capacity	18.5 L 4.9 U.S. gal.
Cargo box dimensions	82L x 120.9W x 29.7D (0.25 m3) cm 32.3L x 47.6W x 11.7D (8.9 ft3) in.
Cargo box capacity (weight)	227 kg 500 lb
Payload capacity	408 kg 900 lb
Towing capacity	1500 lb 680 kg
Hitch	Standard 2 in. (50 mm) rear receiver with optional 2 in. (50 mm) front receiver with recovery loops

Color	Green/Yellow; Olive/Black, Camo
Power steering	Not available
Battery / Alternator / Power port	340 CCA 16 amp @ 4100 rpm, regulated 12 VDC standard outlet
Instrumentation	Digital display with hour meter with maintenance and driver seatbelt reminder; optional speedometer and engine oil temperature sensor
Storage	Two cup holders, sealed under hood storage, glove box
Seating	Bench seat

Country of Manufacture	U.S.
