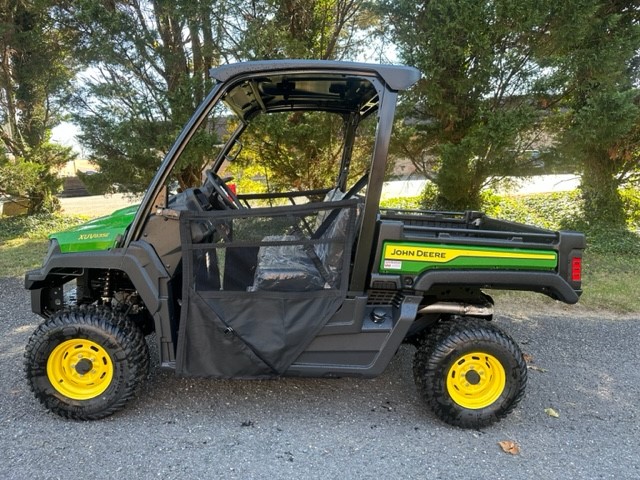

New 2024 XUV835E

Specifications

Engine power	40.3 kW 54 hp
Cargo box dimensions	1143 x 305 x 1320 mm 45 x 12 x 52 in.
Cargo box capacity (weight)	454 kg 1000 lb
Towing capacity	Up to 1814 kg 4000 lb
Front suspension	Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear suspension	Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel
Final drive	Park, high, low, neutral, reverse transaxle
Four wheel drive	Dash switch actuated four-wheel drive system
Fuel capacity	42.4 L 11.2 U.S. gal.

Type	4-cycle gas, electronic fuel injection (EFI)
Displacement	812 cc
Power	40.3 kW 54 hp
Cooling system	Liquid

Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
Final drive	Park, high, low, neutral, reverse transaxle
Four wheel drive	Dash switch actuated four-wheel drive system
Traction assist	Limited slip front differential, Positive locking, switch actuated rear differential lock
Descent control	Yes

Front	Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
Rear	Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel

Type	Front/rear hydraulic disc with twin piston front calipers
Park brake	Park in-transmission

Front	25x9-12 Terra Hawk all-terrain on steel wheels 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel wheels
Rear	25x11-12 Terra Hawk all-terrain on steel wheels 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel wheels

Wheelbase	2146 mm 84.5 in.
Weight	With fuel and fluids: 861 kg 1898 lb
Length	3228 mm 127 in.
Width	1618 mm 63.7 in.
Height	1981 mm 78.0 in. With roof: 1987 mm 78.2 in.
Tread centers	Front: 1341 mm 52.8 in. Rear: 1259 mm 49.6 in.
Ground clearance	284 mm 11.2 in.
Fuel capacity	42.4 L 11.2 U.S. gal.
Cargo box dimensions	1143 x 305 x 1320 mm 45 x 12 x 52 in.
Cargo box capacity (weight)	454 kg 1000 lb
Payload capacity	684 kg 1508 lb
Towing capacity	Up to 1814 kg 4000 lb
Hitch	Standard receiver: 5.1 cm 2 in.

Color	Green and yellow
Power steering	No
Battery / Alternator / Power port	Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V
Instrumentation	Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
Storage	Total: 97.8 L 25.8 gal. Four cup holders: 1.3 L 0.3 gal. Center tray: 1.2 L 0.3 gal. Three dash bins: 5.0 L 1.3 gal. Storage pocket: 1.4 L 0.4 gal. Glove box: 3.8 L 1.0 gal. Under seat: 55.3 L 14.6 gal. Optional under hood: 30.0 L 7.9 gal.
Seating	Black vinyl 40/60 split three-passenger bench

Country of Manufacture	U.S.
Date collected	8-Jun-22
